Transluxus AT01

Recommended Application
LONG HAUL
Features

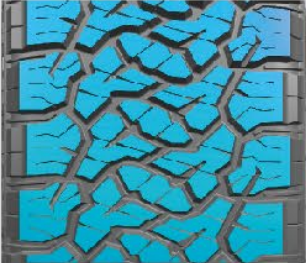

  • Special zigzag pattern design
    Special zigzag pattern design
    The large zigzag pattern design can cope with roads and various complex non-paved roads;
    There are wide grooves between the patterns to provide better mud sand, and stone trapping perormance;
    Serrated shoulder blocks for better traction on softer surfaces.

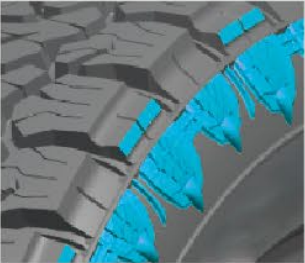

  • Stepped shoulder shape design and eagle claw sidewall design
    Stepped shoulder shape design and eagle claw sidewall design
    The shoulder pattern is dislocated to provide additional grip, enhance the traction ability when drivingin complex road conditions such as mud,rocks and snow,and maintain good performance even in low air pressure conditions;
    The eagle claw sidewall design extending from the tire shoulder, the claw tip shape has a large arc,creating the effect of the claws grasping the tire,3mm thicker than the sidewall, and protecting the sidewall fromimpacts and cuts.

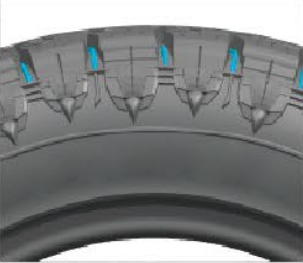

  • Self-cleaning design
    Self-cleaning design
    Self-cleaning mud strip design, adding stone and mud discharge structures at the bottom of the pattern groove, timely remove the stones mixed in the pattern groove, improve the self-cleaning performance of muddy road conditions, and ensure the traction of the tire.

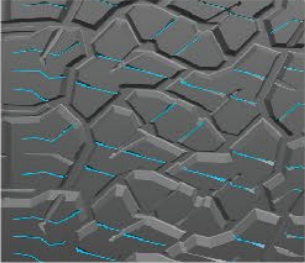

  • High density sipe design
    High density sipe design
    A large number of sipes endow the tread with reasonable rigidity,increase the grip, effectively break the water film, and improve the safety performance of driving in rain and snow,The sipe, combined with the 3D trimming design,continues to improve the tire's wet grip performance while preventing early abnormal wear
SIZE
15"
16"
17"
18"
19"
20"
INCHSizeLI/SSXLMeasuring RimSection Width (mm)Overall Diameter (mm)Max.Load(kg)Max.Pressure(kPA)
15LT215/75R15106/103S8PR6J216703950450
15LT215/75R15106/103S8PR6J216703950450


INCHSizeLI/SSXLMeasuring RimSection Width (mm)Overall Diameter (mm)Max.Load(kg)Max.Pressure(kPA)
16LT235/70R16110/107Q8PR7J2407361060450
16LT235/70R16110/107Q8PR7J2407361060450
16LT245/70R16113/110S8PR7J2487501150450
16LT245/70R16113/110S8PR7J2487501150450


INCHSizeLI/SSXLMeasuring RimSection Width (mm)Overall Diameter (mm)Max.Load(kg)Max.Pressure(kPA)
17LT245/70R17119/116S10PR7J2487761360550
17LT245/70R17119/116S10PR7J2487761360550
17LT265/65R17120/117Q10PR8J2727761400550
17LT265/65R17120/117Q10PR8J2727761400550
17LT285/70R17126/123S10PR8½J2928321700550
17LT285/70R17126/123S10PR8½J2928321700550


INCHSizeLI/SSXLMeasuring RimSection Width (mm)Overall Diameter (mm)Max.Load(kg)Max.Pressure(kPA)
18LT255/60R18112/109S8PR7½J2607631120450
18LT255/60R18112/109S8PR7½J2607631120450
18LT265/60R18119/116S10PR8J2727751360550
18LT265/60R18119/116S10PR8J2727751360550
18LT265/65R18122/119S10PR8J2728011500550
18LT265/65R18122/119S10PR8J2728011500550
18LT285/60R18118/115S8PR8½J2927991320450
18LT285/60R18118/115S8PR8½J2927991320450


INCHSizeLI/SSXLMeasuring RimSection Width (mm)Overall Diameter (mm)Max.Load(kg)Max.Pressure(kPA)UTQG
19265/55R19113TXL8½J2777751150340440AB
19265/55R19113TXL8½J2777751150340440AB


INCHSizeLI/SSXLMeasuring RimSection Width (mm)Overall Diameter (mm)Max.Load(kg)Max.Pressure(kPA)
20LT275/55R20120/117S10PR9J8222971500550
20LT275/55R20120/117S10PR9J8222971500550
